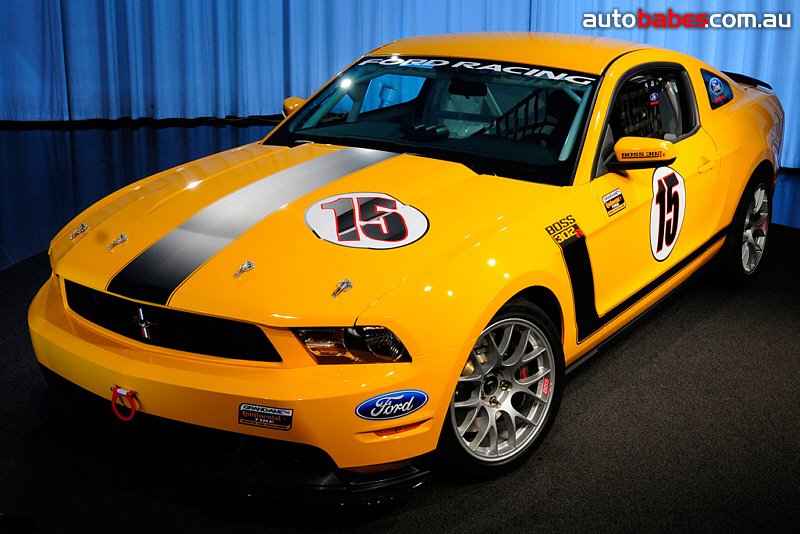

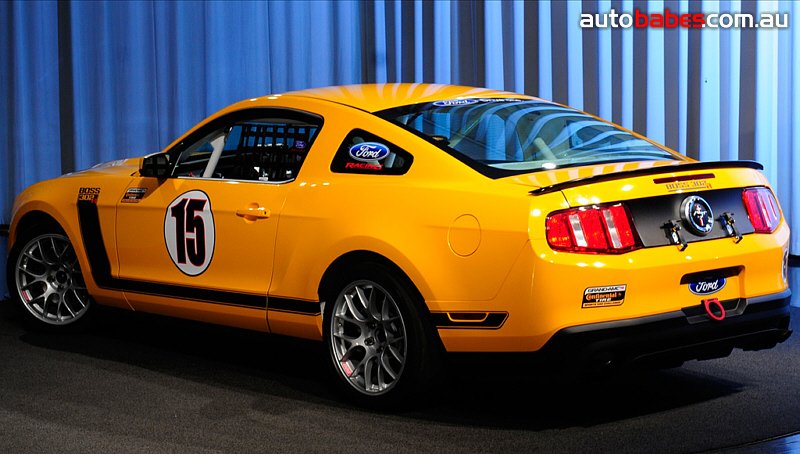

First Pics: Ford Mustang BOSS 302R !

Forty years after its namesake became a road racing legend, Ford Racing is introducing the BOSS 302R, a factory-built race car ready for track days and road racing in a number of Grand-Am, SCCA and NASA classes. Each base model of the Mustang BOSS 302R will come with a 5.0-liter four-valve engine, six-speed manual transmission, a roll cage, race seats, safety harness, data acquisition and race dampers/springs, and a Brembo brake and tire package.

________________



General specifications

Country of origin	USA
Numbers built	N/A
Introduced	2010

Engine

Configuration	90º V 8
Location	Front, longitudinally mounted
Construction	aluminium block and head
Displacement	4.951 liter / 302.1 cu in
Bore / Stroke	92.2 mm (3.6 in) / 92.7 mm (3.6 in)
Compression	11.0:1
Valvetrain	4 valves / cylinder, DOHC, Ti-VCT
Fuel feed	Fuel Injection
Aspiration	Naturally Aspirated

Drivetrain

Chassis/body	unitary steel
Front suspension	McPherson struts, anti-roll bar
Rear suspension	3-link solid axle, coil springs, Panhard rod, anti-roll bar
Steering	rack-and-pinion, electric power assistance
Brakes	ventilated discs, all-round, ABS
Gearbox	6 speed Manual
Drive	Rear wheel drive

Performance figures

Power	412 bhp / 307 KW @ 6500 rpm
Torque	529 Nm / 390 ft lbs @ 4250 rpm
BHP/Liter	83 bhp / liter
Power to weight	0.24 bhp / kg
